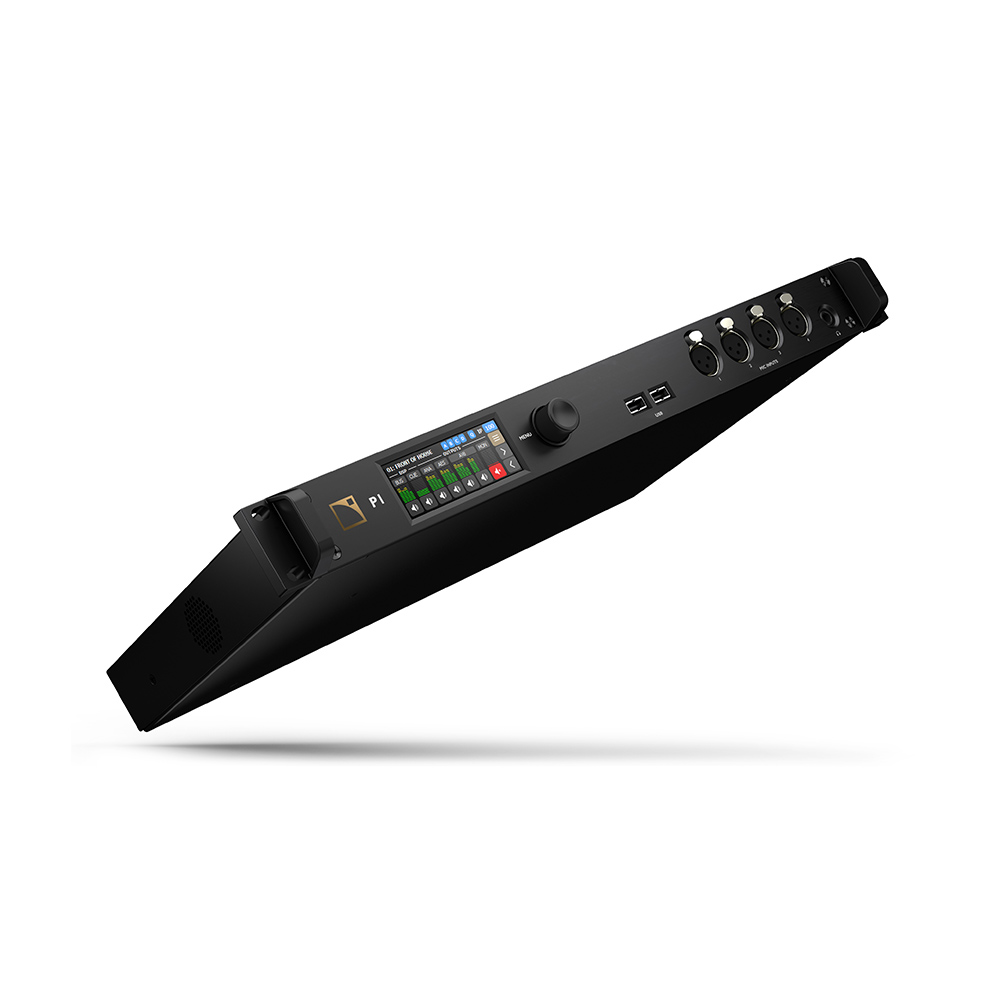

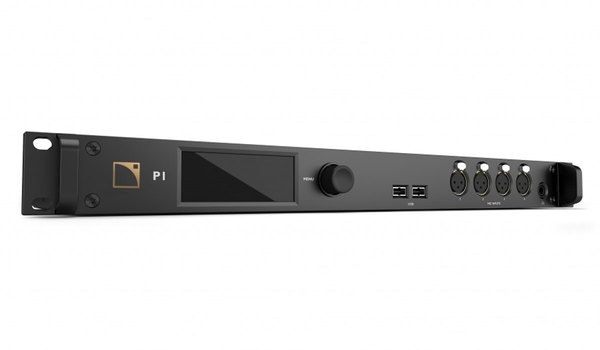

Key features of the L-Acoustics P1 Processor include:
EQ station with delay and dynamics processing
Multi-mic acoustic measurement platform
Bridging of ABV, AES/EBU, and analogue audio
<
Full integration with LA Network Manager
Time-aligned redundant signal distribution
Offline delay finder and EQ
20 x 18 architecture
P1 Processor I/O and DSP Configuration
20 Inputs including:
4 mic/line inputs with switchable +48 V phantom power and low pass filter
4 analogue line inputs with premium A/D conversion
4 AWS/EBU inputs with big-quality sample rate converter
One AVB listener capable of retrieving eight audio channels from one stream (6 channels available when the media player is enabled)
18 Outputs including:
4 analogue line outputs with premium A/D conversion
4 AES/EBU outputs
One AVB Talker capable of sending eight audio channels in one stream (depending on configuration – restrictions apply in measurement mode)
1 stereo headphone output
DSP Configuration
Dual DSP Core
32-bit floating point processing at 96 kHz
Matrix mixing of 20 inputs to 4 independent DSP busses with EQ and Dynamics processing
Cue bus
Direct routing to any of the 18 outputs
Signal generator
Media player
The DSP bus processing block includes:
Gain, Mute, Polarity
Delay up to 4000 ms
16 EQ filters
Dynamics processing
