Martin M-Touch uses M-PC as software that will run on a Windows PC and can be downloaded here.

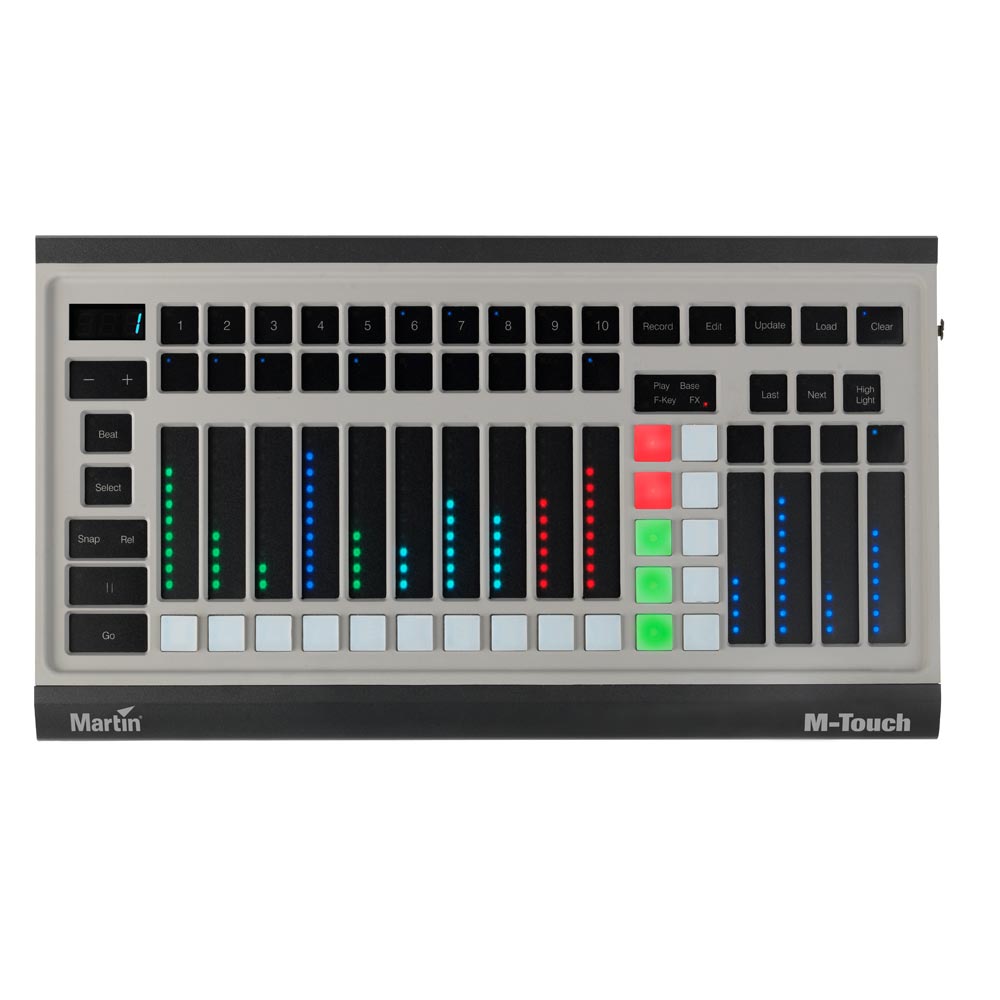

Martin M-Touch is a powerful yet simple control surface for the Martin M-Series controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M-Series consoles and M-PC software, Martin M-Touch is a plug-and-play solution with an innovative control surface like no other lighting console.
14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. Martin M-Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.
Truly affordable console surface for both smaller applications and professional use
Rugged aluminum design for durability
The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels
Περιγραφη
FEATURES
Truly affordable console surface for both smaller applications and professional use
Rugged aluminum design for durability
The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels
SPECIFICATIONS
PHYSICAL
Length: 394 mm (15.5 in.)
Width: 218.5 mm (8.6 in.)
Height: 46.5 mm (1.8 in.)
Weight: 1.5 kg (3.3 lbs.)
CONTROL/USER INTERFACE
Bank Navigation Up/Down with numerical display
Main Go section: Snap, Release, Pause and Go buttons
Command Buttons: Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons: Last, Next, Highlight
4 x Parameter Select buttons
4 x Parameter Adjust touch faders
10 x Function velocity pads
PLAYBACK
10 x Playback touch faders with 3 buttons
(2 x touch pad, 1 x velocity pad)
SYSTEM INTEGRATION
Unlocks 1 x DMX universe when connected to M-PC™
CONSTRUCTION
Housing: Aluminum, steel, plastic
Mounting: VESA 75×75, 100×100
Security: K-Lock locking slot
IP Rating: IP20
CONNECTIONS
DMX data link: 1 x 5-pin locking XLR
Windows PC: USB 2.0
ELECTRICAL
Power source: 5 VDC over USB
Maximum current: 500 mA
THERMAL
Operating temperature: 0° – 50° C (32° – 122° F)
INCLUDED ITEMS
USB cable 1.5m (4.9 ft.)
ACCESSORIES
Martin™ M-Sync SMPTE USB: P/N 90703020
M-PC 2U / M-DMX: P/N 90737070
Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460
Rackmount bracket: P/N 91611690
RELATED ITEMS
M-Series Submaster Module: P/N 90732170
M-Series Playback II Module: P/N 90732190
Martin™ M-Play: P/N 90737030
Martin™ M-PC Pro 64 / LightJockey 4 Controller Kit:P/N 90737060
ORDERING INFORMATION
Martin M-Touch: P/N 90737040
