ADJ AV2 VIDEO PANEL

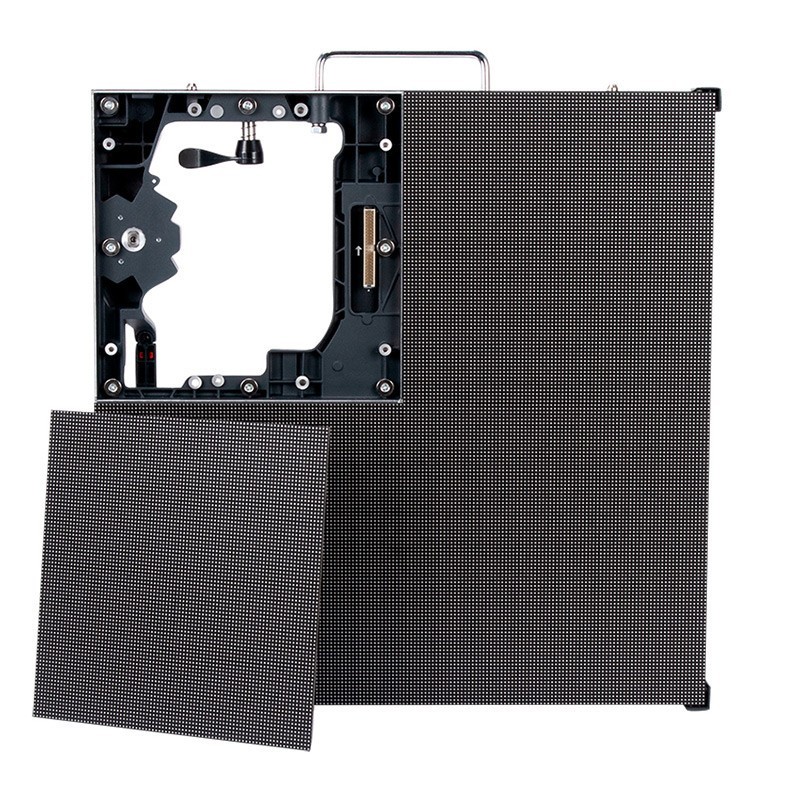

The AV2 is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED.

Περιγραφη

ΠΡΟΔΙΑΓΡΑΦΕΣ:

• Pixel Pitch: 2.97mm (0.17”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 168×168; 112896 per square meter
• Size :19.75” x 19.75” x 3” / 500 x 500 x 73mm
• Module Quantity: 4
• Weight: 17.64 lbs. / 8kg.

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm OPTICAL RATINGS: • Brightness: 1000 NITS • View Angle: Horizontal 160°/Vertical up 60° down 60° @ 9.75 ft. (2.97m) • Gray Scale / Display Color: 14-bit • Brightness Adjustment: 0~100% 100 Levels • Processing: 14-bit POWER SUPPLY: • Operation Power: 100~240V 50-60Hz • Max. Power Consumption: 120W/per panel • Ave. Power Consumption: 48W/per panel • Connections Power/Data: Locking Power In/Out; Data Locking RJ45 In/Out CONTROL SYSTEM: • Control Mode: Nova Star Synchronous System with Control via DVI • Frame Update Frequency: 50-60Hz • Scan Mode: 1/21 • Refresh Rate: ?1920Hz • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI • Control Distance: Ethernet Cable <100m or="" fiber="" optic="">120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
