QSC Q-SYS NV-32-H
4K60 4:4:4 Network Video Endpoint for the Q-SYS Ecosystem, software configurable as Encoder or Decoder. 3 HDMI 2.0 Inputs, 2 HDMI 2.0 Outputs, on-board AV Bridging.
Περιγραφη
Encoding/Decoding
Video compression: Q-SYS Shift™ compression codec
Bitrates: 10 Mbps – 800 Mbps
Content protection: HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders
Audio I/O
HDMI inputs: 8-channel PCM audio, Q-SYS routable
HDMI outputs: 8-channel PCM audio, Q-SYS routable
Analog input: 3.5 mm unbalanced stereo mic/line input Q-SYS routable
Analog output: 3.5 mm unbalanced stereo line output Q-SYS routable
Video I/O
HDMI 2.0 inputs: 3x HDMI capable of receiving source input video formats up to 4K60 4:4:4
HDMI 2.0 outputs: 2x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4
Scaler: Each HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions

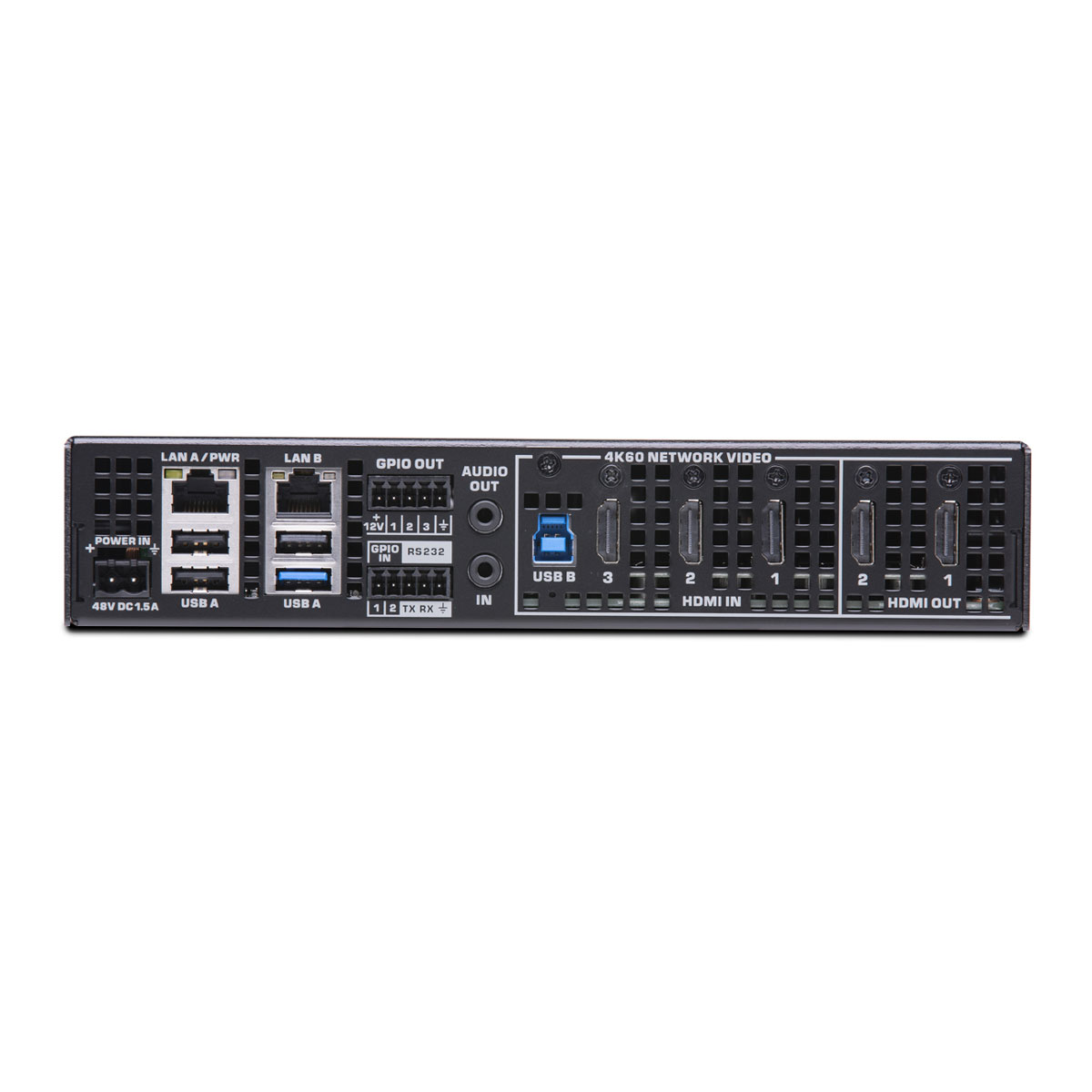

Connectors
RS-232: Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
GPIO: Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable
LAN A: Gigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power.
LAN B: No functionality at initial release
Audio input: Signal to Noise 90 dBFS, THD+N 0.009% @ 0 dB
Audio output: Signal to Noise 90 dBFS, THD+N 0.0167% @ 0 dB
Power
Power over Ethernet specification/wattage: Conforms to IEEE 802.3bt Type 4
Physical power supply info: 48 V DC Nominal, 1.5 A on 2-pin Euro connector
Environmental
Ambient operating temperature range: 0-50° C
Humidity: 5 to 85% non-condensing
Storage temperature: -20 to 70° C
General
Dimensions: 220 mm x 286.6 mm x 43.6 mm
Weight: 1.81 kg
Regulatory compliance: CE, FCC Part 15 Class B, RoHS
Mounting options: Rack-mountable, 1RU half-rack width, Surface-mountable, table or wall-mount, All mounting hardware is included
